 Granular Synthesis

Granular Synthesis

Granular Synthesis was first conceptualized by David Gabor in 1946 with its first implementations by Iannis Xennakis in 1959. It took decades for the first realtime implementations by Curtis Roads in 1988. Since the 1970’s granular synthesis has become a basic building block of our synthetic aural/audio landscape much in the same way that frequency modulation and tape manipulation techniques have. There has been substantial developments in granular synthesis that have led to an increasing number of flavors of granular synthesis led by people like Curtis Roads, Kim Cascone and Barry Truax, to name a few. With synchronous, asynchronous, clouds, granular specialization, realtime, time-thrashing and a myriad of other techniques it has become a versatile and diverse language of approaches and sounds.

Bell Granular synthesis is another approach to this developing language of granulation. It incorporates a number of other types of granular models with an approach that includes inspiration from spectral techniques and sensitivities. At the base is a standard grain production unit where one manipulates;

– grain length (length of grain proportionate to the period of the grain speed)

– grain speed (how long the period of time is before grains repeat)

– grain envelope (the shape of the grape)

– grain offset (where a grain is placed in the span of a period)

– grain pitch

– synchronous and asynchronous selection

– grain density (# of grains per period)

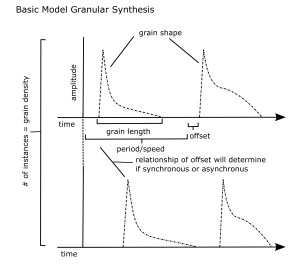

Granular Synthesis Model – showing parameters

What sets Bell Granular Synthesis apart from other methods is the implementation of spectral process that manage pitch information in what is called a FakeCoder (it is essentially a vocoder without LPC), a physical modeled resonating body and realtime manipulation for grain envelopes/shapes.

Granular Synthesis Bell Granular Synthesis

 FakeCoder

FakeCoder

The FakeCoder was initially implemented in 2003 while studying Linear Predictive Coding and phase vocoder. In a response to the noise art of the time, it was decided to work with harmonic sounds and complex timbres and drop strictly enharmonic sounds. The FakeCoder assumes that every sound is harmonic, reproducing only the sustained periods of harmonic sounds, with no noise based articulation.

The FakeCoder estimates a fundamental frequency and then tracks the envelopes of each of the harmonics in series of the sound. The result is an imperfect, yet, sung version of a sound. The tracking can be stored in tables. This imperfect representation abstracts the original sound source that still has clear reference to the original. Elements of rhythm, timbral characteristics are all still discernible. The new synthesized will work well in conjunction with the original, blurring the line between acoustic and electronic sounds, allowing for a copacetic blending of colors.

Initial implementations of this technique have the following parameters for consideration:

– sample resolution (how often amplitudes are sampled and stored)

– glide time (how long it takes to transition from frame to frame)

– read speed (how fast to read back from the tables)

– fundamental frequency

– # of harmonics

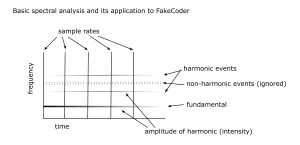

Spectral Analysis – This diagram shows the fundamental properties of spectral analysis for implementation in the FakeCoder

The technique has further developed to create 1) Prong~, a fundamental unit to Bell Granular Synthesis and 2) Essence Synthesis, a second generation FakeCoder that includes the implementation of non-noisey enharmonic sounds.

FakeCoder Bell Granular Synthesis

 BodyFilters

BodyFilters

The idea of creating a physical modeled body filter became a side development of the FakeCoder. The work was inspired by Perry Cook‘s research on physical model that led to a two-part development of a light-weight-physical-modeling synthesizer named Es PM Synth and a body resonator, BodyFilters.

The body resonator is a group of parallel bandpass filters (24 per instance in its full implementation – with Nyquist compensation). though acoustically the filters are in parallel, the manipulation of the filters are in sequence. this allows for realtime manipulation of the resonate frequencies, allowing for a dynamic and continuous change in body properties. With the help of the research work of Eric Lindemann the approach was to follow his fundamental considerations of spectral characteristics to get a great degree of diversity of sound as well as a realistic degree of control ability in a realtime implementation;

– spectral skew (the tuning of partials)

– spectral parity (the balance of even and odd partials)

– spectral tilt (the emphasis on either high or low partials and the degree of difference between the high and low partials)

– fundamental frequency (the frequency all other frequencies are related by ration determined by a combination of skew and its place in the harmonic series)

Two further areas of manipulation were added for greater control

– spectral angle (a subcategory of spectral tile, where how quickly the partials decay in proportion to the spectrally emphasized partial)

– Q (this is because of the subtractive nature of the synth)

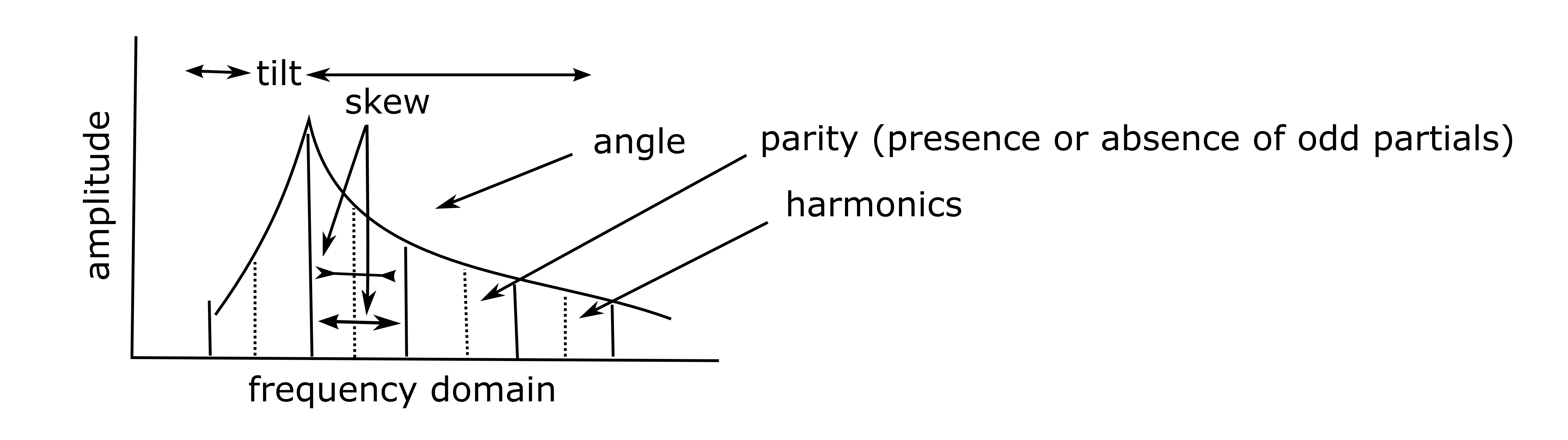

Spectral Properties

With these simple parameters, sounds of strings, brass and winds can be emulated, as well as other more synthetic sounds. Essentially these parameters emulate the shape, size, material and thickness of a resonating body.

BodyFilters Bell Granular Synthesis

 prong~

prong~

prong~ is at the heart of Bell Granular Synthesis. It is named after a the sound of a prong from a comb. Each prong~ consists of;

1) a spectral sensitive and malleable subtractive synth

2) a delay line

3) two grains per period (standard implementation)

1) Subtractive Synthesizer

prong~, and in correspondence granular bell synthesis, takes an opposite approach to the first granular system, which were based on oscillators. The first process for each audio signal that is subjected to bell granular synthesis is first fed through a subtractive synthesizer. prong~ is developed from the FakeCoder and BodyFilters. Each prong has spectral properties that are malleable. These are the same control concepts and values as the Bodyfilters; spectral skew, spectral parity, spectral tilt, spectral angle, spectral emphasis, Q and fundamental.

Each sound that enters the synthesizer can be manipulated by taking the initial color of the sound that is then run through a subtractive synthesizer. This, like the FakeCoder, gives a sense of connection between the original signal and the output, though not being the same.

The use of subtractive synthesis gives a complex and varied sound that can also be a live manipulation.

2) Delay Lines

After the sound has been striated through the bandpass filters, the sound is then fed to a delay line. The delay line. This allows for time-thrashing, a form of realtime granular synthesis where a sound is manipulated in the time domain before being granulated. Each prong~ has its own delay line, allowing for a time to have the perception of disintegrating in time.

3) Granulation

Each prong~ consists of 2 grains that is fed a signal that has been filtered and been passed through a delay-line. Each grain receives its own signal that is delayed separately. The grain is a standard implementation where the parameters for manipulation are:

– grain length (length of grain proportionate to the period of the grain speed)

– grain speed (how long the period of time is before grains repeat)

– grain envelope (the shape of the grape)

– grain offset (where a grain is placed in the span of a period)

– grain pitch

– synchronous and asynchronous selection

– grain density (# of grains per period)

(February 2013)

There has been the addition of a tunable (in frequency), modulating resonant filter on each grain. This allows for a even wider color pallet for grains, as well as a possibility to sustain sounds.

prong~ Bell Granular Synthesis

 Realtime Dynamic Windowing

Realtime Dynamic Windowing

The shape of a grain (envelope) is a very powerful timbral consideration in granulate synthesis. Often granular synthesis techniques give standard window shapes such as hanning, hamming, exp decay/attack windows and the likes. It is fair to say that this limits the timbral range possible, particularly if there is no way of mutating from shape to shape and only allowing for discrete changes in grain shape. This led to a method of mutating from one grain shape to another. The decision was to start with two simple shapes; hanning and exponential (attack and decay since they are similar in principle).

Early implementations of the mutation between these two window types quickly let to a very diverse and dynamic color palate that was not available in any other standard window shape. It also allowed for a life cycle of grain shape, which my research had not come across before. Through experimentation it was discovered that multiple cycles per grain period created even more complex sounds, as well as allowing for the implication of having more grains per second (up to 5000 grains per grain per period, allowing for a total of 240,000 grains implied per period, with only using the CPU usage for 24).

Realtime Dynamic Windowing Bell Granular Synthesis

 Bits and Bobs

Bits and Bobs

There are a few very simple implementations in the whole process that need to be mentioned. To emulate the sound of harmonics, there is an implementation of series and parallel comb filters. Simply, the comb filters are tuned an octave above the given pitch, when triggered they emulate the sound of harmonics. Reverb is also used to add a sense of space.

Bits and Bobs Bell Granular Synthesis

 Putting It All Together

Putting It All Together

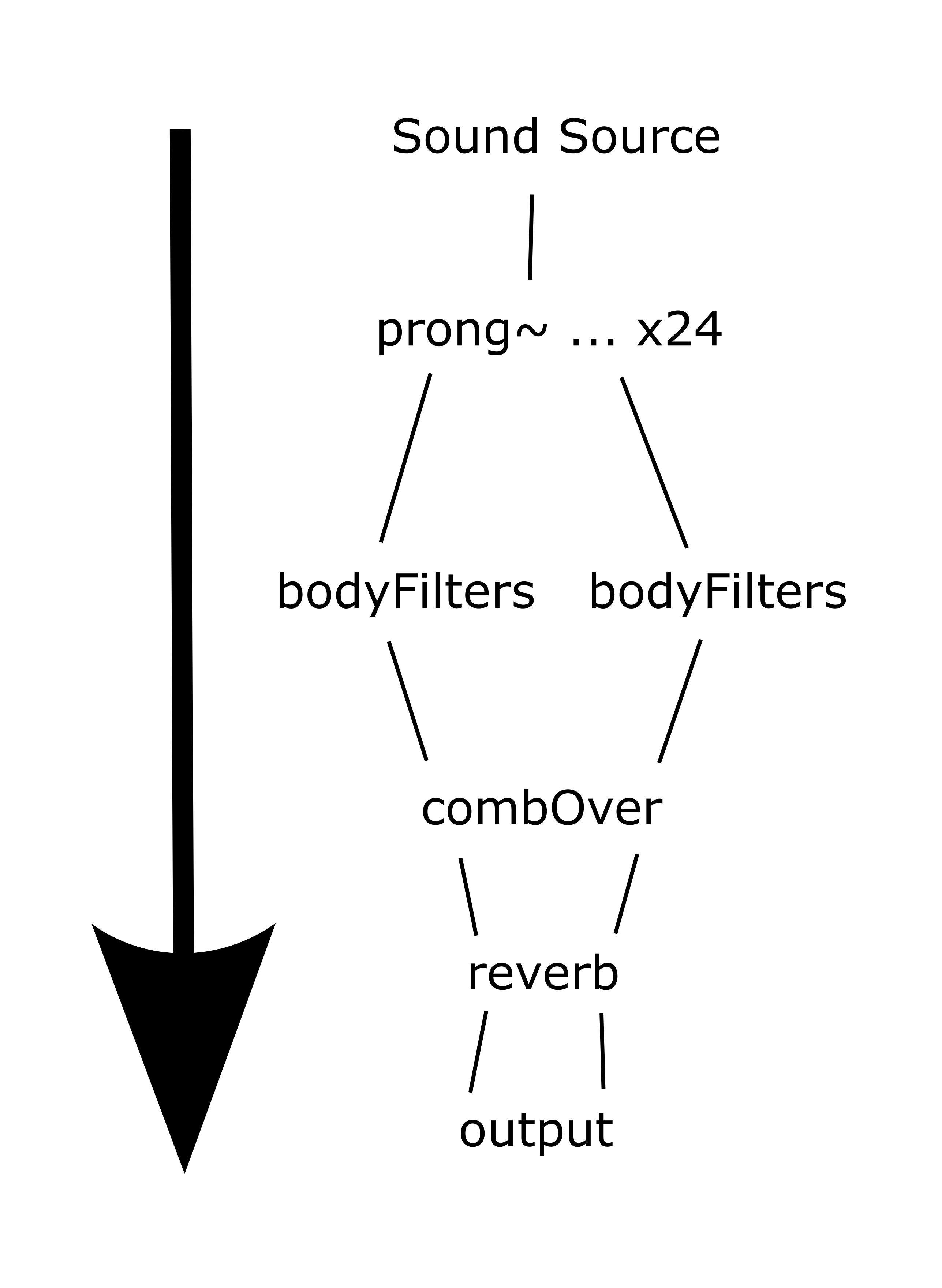

The following diagram demonstrates the signal-flow of Bell Granular Synthesis.

The inevitable problem, like all granular synthesizers is still controllability. This issue was tackled in the development of the Strombaphone and is discussed in some of its documentation.

Putting It All Together Bell Granular Synthesis
